1/24th scale Roll Off Rack Kit

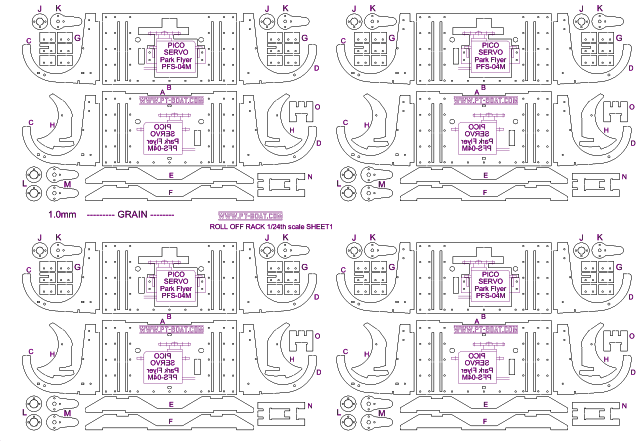

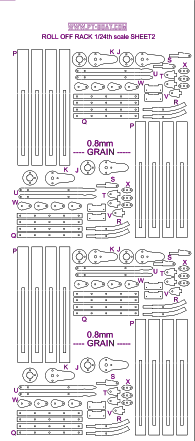

This Kit consists of 1 sheet of 1.0mm (40 thou) and around a third of a sheet of 0.8mm (32 thou) fine marine grade Finish Birch Plywood, each full sheet is approximately 304mm (12") x 407mm (16") and contains four sets of parts to make up four Roll Off Racks to hold 1/24th scale USN Mk13 torpedoes. Full assembly instructions are supplied.
You will need to supply fine brass wire, a micro servo and a 6.35mm x 6.35mm (1/4") neodymium magnet for each ROR and some good quality adhesive (cyanoacrylate).
The finished diameter of the torpedo holder is designed to accomodate a 1/24th scale USN Mk13 torpedo at 23.8mm or 0.94".
The fine grade marine grade Birch Plywwod from Finland is 3 ply, I buy it in 1210mm x 1210mm (4' x 4') sheets and cut it into 4 x 3 smaller sheets so that it will fit into my Epilog 12" x 18" 50Watt laser cutter and also so it can be shipped fairly economically in a padded post bag.
This kit weighs around 0.2 Kilograms or 0.1 Lbs.
I send all packages with tracking so that they don't get lost. Often packages are held at the customers local Post Office as they can be too large for the customers mailbox, so if it has been a week or more since I notified you about shipment, please check with your Post Office. If I receive an attempted delivery message I will email you. If you don't pick it up after a couple of attempted deliveries it will likely get returned to us.
All packages are marked with the international Harmonised code for Reduced Scale Model Kits - HS950320. I also wrap the laser cut plywood in cling wrap to keep the sheets and instructions together and to reduce the "burned wood" smell which has, in the past, caused a returned shipment from France.
The total price includes tracked parcel postage to most places in Australia, New Zealand, Canada, the US, UK or Europe.
BUY IT NOW!
© Copyright 2019 John Drain
