Laser cutting files - DWG / DXF Pricelist
If you have your own laser cutter these files may be used directly - if you don't have access to a laser cutter, there are many commercial laser cutting companies, all over the world, that you can send the files to, I don't like making recommendations after the Shapeways debacle, please e-mail me, if you find good ones..
These files are optimised to be cut from a sheet larger than 300mm x 400mm. (PT-Boat uses 12" (304.8mm) x 16" (406.4mm) sheets) of Birch marine grade ply of 0.6mm / 0.8mm / 1mm / 1.5mm and 2mm and 3mm pine marine ply.
FOR LASER CUTTING
The drawings consist of two flat 2 dimensional layers - layer 0 is the vector cutting layer that needs to be cut through and layer 0-text is the raster detail and lettering layer which needs to be etched only.
PT-Boat uses a USA made Epilog laser cutting machine.
These files have cutting outlines that have a number of "tags" or non cutting spots that prevent the cut parts (ribs etc.) from falling out of the sheet.
The laser cutting drawing sheets are optimised for a 12" x 18" laser cutter (We use an Epilog brand machine) they consist of two layers, a cutting layer for vector cutting and a separate raster layer for text and other markings.
Buy DXF/DWG Plans from PT-Boat
| Description | Price ($USD) | Purchase | More Information |
|---|---|---|---|
| Elco 20th Scale Hull-2 DWG/DXF (2mm material) | $29.99 | more info | |
| Elco 20th Scale Deck and Subdeck DWG/DXF (0.8mm - 1.0mm material) | $19.99 | more info | |
| Elco 20th Scale Superstructure DWG/DXF (1.0mm - 1.5mm material) | $19.99 | more info | |
| Elco 20th Scale Planking Strips DWG/DXF (0.6mm - 1.0mm material) | $9.99 | more info | |
| Higgins 20th Scale Hull Kit and Extra Rib Kit DWG/DXF (2mm & 1mm material) | $29.99 | more info more info |
|
| Higgins 20th Scale Deck Kit DWG/DXF (0.8mm - 1.0mm material) | $19.99 | more info | |

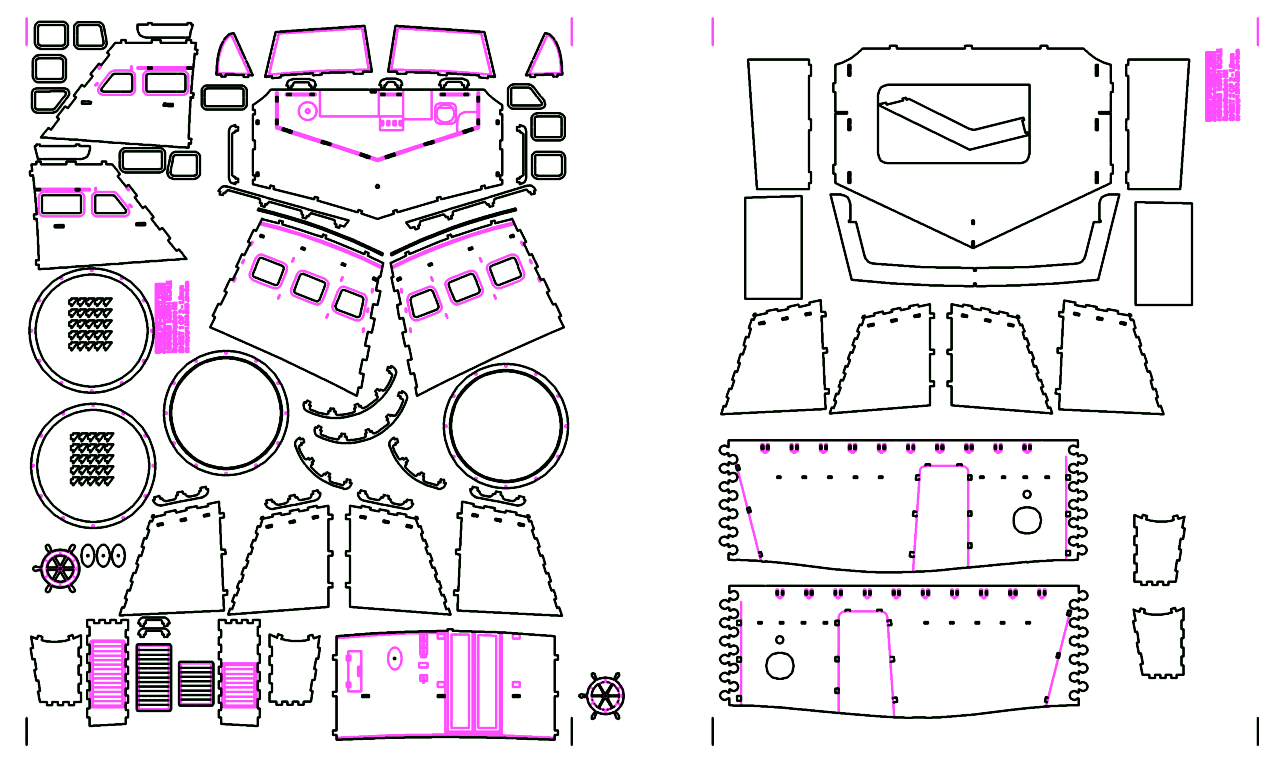

| Higgins 20th Scale Superstructure Kit DWG/DXF (1.0mm material) | $9.99 | more info | |

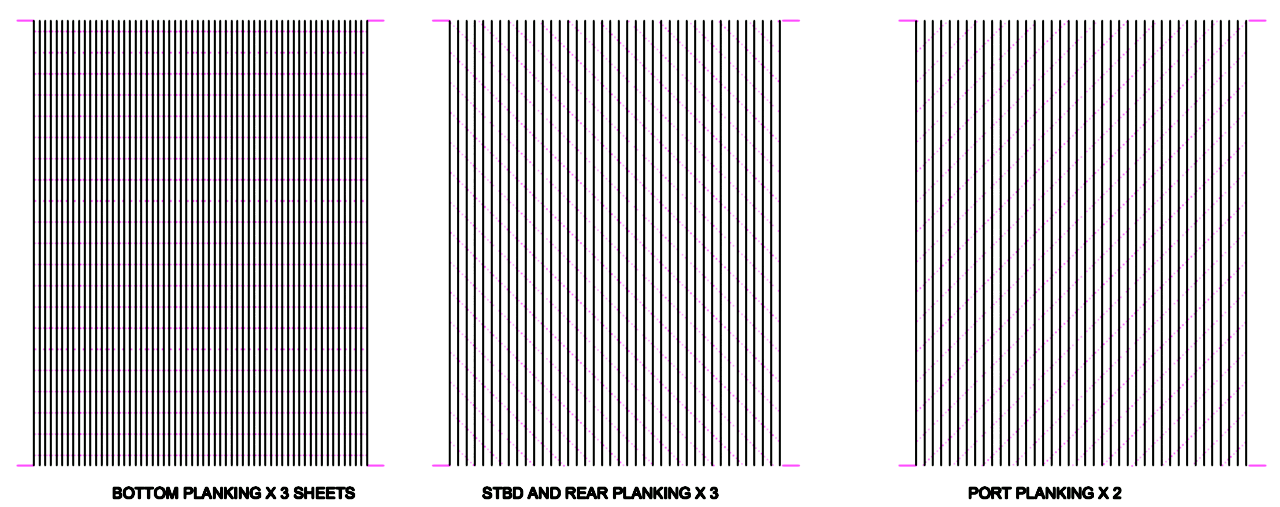

| Higgins 20th Scale Planking Kit DWG/DXF (0.8mm material) | $9.99 | more info | |

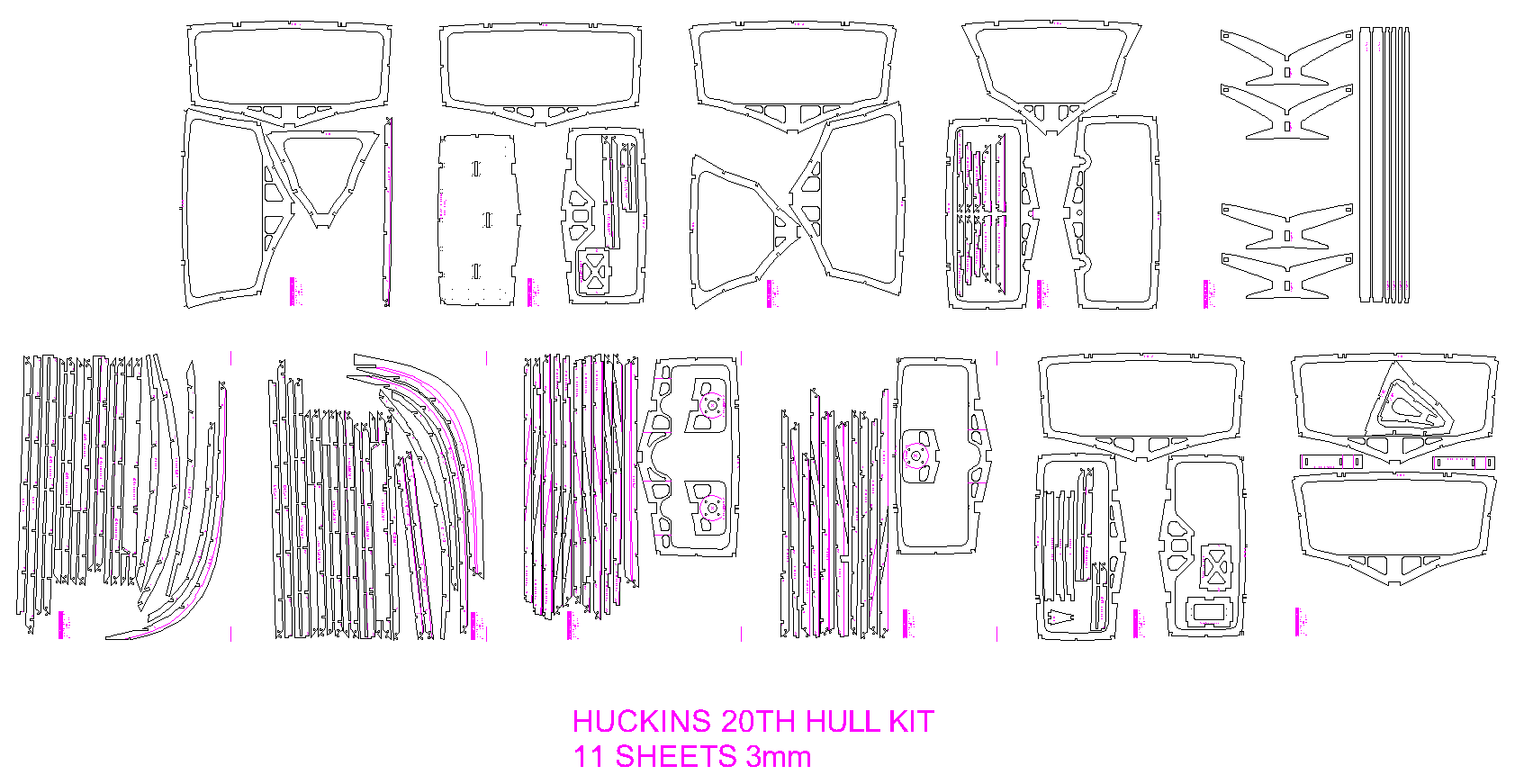

| Huckins 20th Scale Hull Kit DWG/DXF (3mm material) | $29.99 | more info | |
| Huckins 20th Scale Deck Kit DWG/DXF (0.8mm - 1.0mm material) | $19.99 | more info | |
| Huckins 20th Scale Superstructure Kit DWG/DXF | $19.99 | more info | |
| Schnellboot 20th Scale Hull Kit DWG/DXF (2mm material) | $29.99 | more info | |
| Schnellboot 20th Scale Deck Kit DWG/DXF (0.8mm material) | $19.99 | more info | |
| Schnellboot 20th Scale Superstructure Kit DWG/DXF (0.6 - 0.8 - 1.0mm material) | $29.99 | more info | |

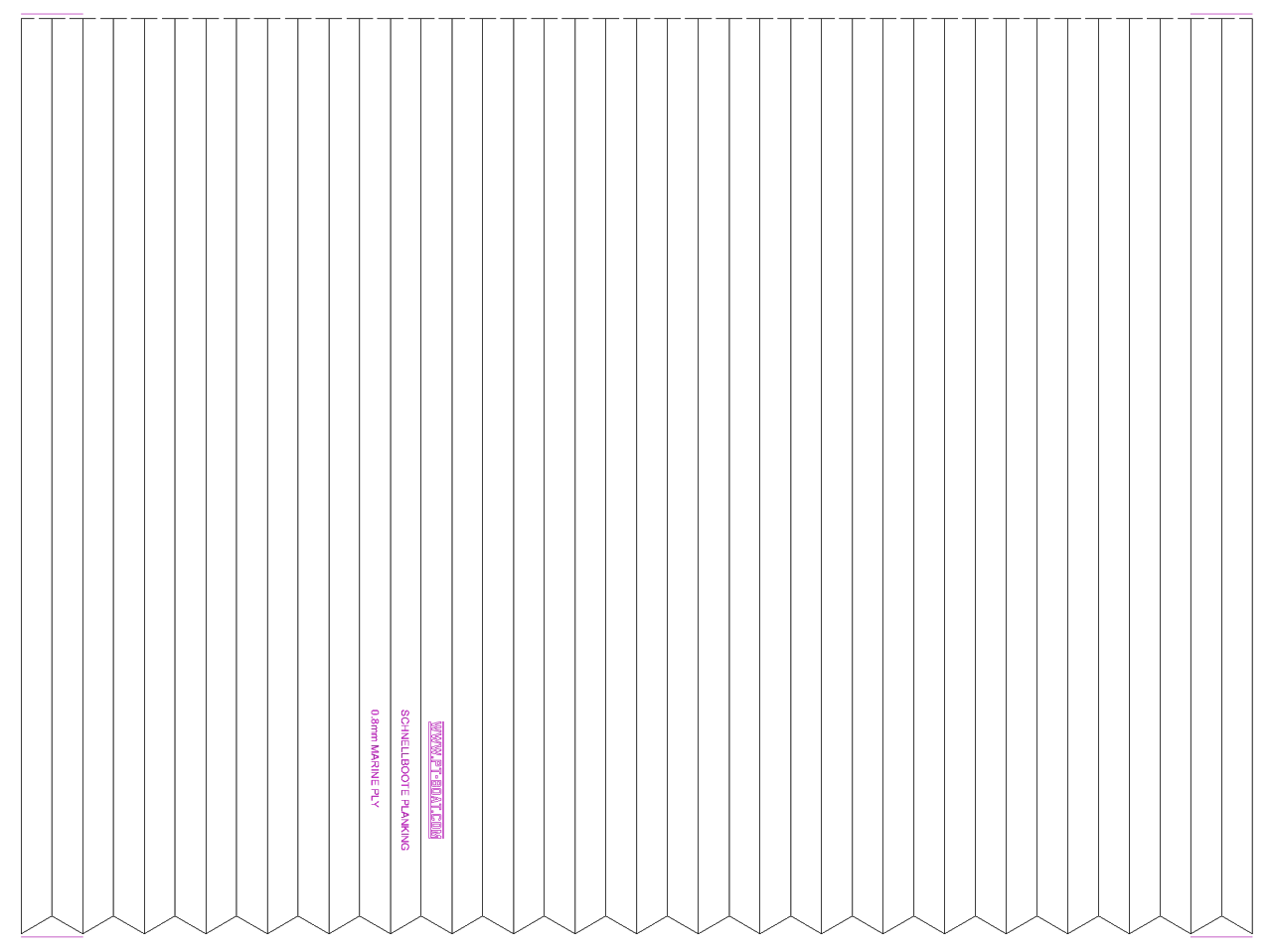

| Schnellboot 20th Scale Planking DWG/DXF (0.8mm material) | $4.99 | more info | |
| Vosper 20th Scale Hull DWG/DXF (3mm material) | $29.99 | more info | |
| Vosper 20th Scale Deck Kit DWG/DXF (0.8mm - 1.0mm material) | $19.99 | more info | |
| Vosper 20th Scale Supestructure DWG/DXF (1.5mm material) | $19.99 | more info |
Need Help? Have Questions About Your Build? E-Mail Me @ info@pt-boat.com
